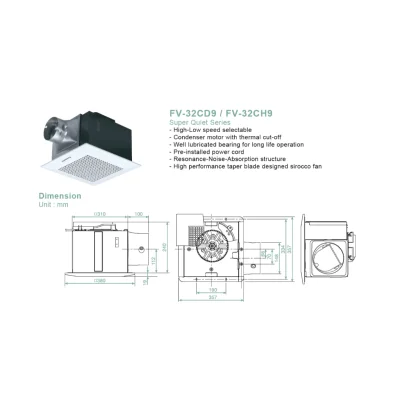

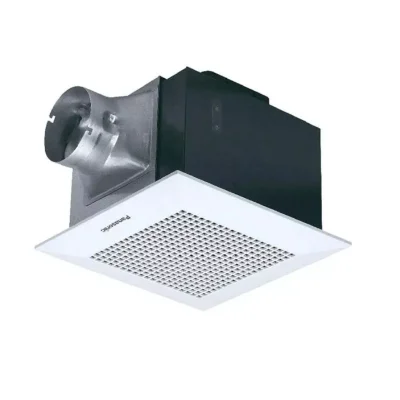

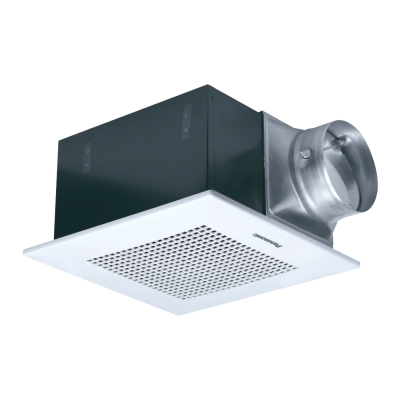

Panasonic ceiling-mounted ventilation fan, standard models FV-32CH9ABH, FV-32CD9ABH.
V-32CD9, 6” outlet, 430ml capacity, 42W power, 220V, 50/60Hz, 5.2kg
FV-32CH9, 6” outlet, 530ml capacity, 55W power, 220V, 50/60Hz, 5.6kg
The fan uses a centrifugal, tapered blade design to reduce air turbulence, resulting in minimal noise. It's made from durable, heat-resistant plastic and features an outlet gravity damper to prevent backflow.
The casing is a double-layered box to absorb noise. The exterior is made of painted steel according to Panasonic's factory standards, while the interior is made of highly heat-resistant plastic.
The noise level is very low, minimizing noise disturbance to residents. Fans delivering airflow not exceeding 200 CFM must have a noise level not exceeding 35 dB(A) according to ASHRAE 62.2 standards, and not exceeding 50 dB(A) for fans delivering airflow not exceeding 500 CFM, measured at a distance of 1 meter from the fan.
The fan must be of a type specifically designed for ceiling installation and capable of being removed and repaired without opening any service access.
The motor must be a Panasonic FV-38CD8 HP (Half Pitch) motor for energy efficiency and improved motor performance. It features grease-free bearings to reduce contact friction and extend lifespan. It is UL certified, has a motor lifespan of at least 60,000 hours, and includes an internal thermofuse to protect the motor from damage if the internal motor temperature is abnormally high. It is aesthetically pleasing and suitable for various locations such as bathrooms, bedrooms, and living rooms. (Panasonic ceiling-mounted fan, Panasonic suspended ceiling fan, suspended fan, ceiling-mounted fan, bedroom fan, bathroom fan, dining room fan) And the other rooms work very well too.
It has a condenser box to prevent fire spread. The power cord and plug have double insulation according to IEC standards.
The materials must comply with RoHS (Restriction of Hazardous Substances) standards for environmental friendliness. The large fan has two speed levels for powerful airflow and is also very energy efficient.
V-32CD9, 6” outlet, 430ml capacity, 42W power, 220V, 50/60Hz, 5.2kg
FV-32CH9, 6” outlet, 530ml capacity, 55W power, 220V, 50/60Hz, 5.6kg
The fan uses a centrifugal, tapered blade design to reduce air turbulence, resulting in minimal noise. It's made from durable, heat-resistant plastic and features an outlet gravity damper to prevent backflow.
The casing is a double-layered box to absorb noise. The exterior is made of painted steel according to Panasonic's factory standards, while the interior is made of highly heat-resistant plastic.
The noise level is very low, minimizing noise disturbance to residents. Fans delivering airflow not exceeding 200 CFM must have a noise level not exceeding 35 dB(A) according to ASHRAE 62.2 standards, and not exceeding 50 dB(A) for fans delivering airflow not exceeding 500 CFM, measured at a distance of 1 meter from the fan.
The fan must be of a type specifically designed for ceiling installation and capable of being removed and repaired without opening any service access.
The motor must be a Panasonic FV-38CD8 HP (Half Pitch) motor for energy efficiency and improved motor performance. It features grease-free bearings to reduce contact friction and extend lifespan. It is UL certified, has a motor lifespan of at least 60,000 hours, and includes an internal thermofuse to protect the motor from damage if the internal motor temperature is abnormally high. It is aesthetically pleasing and suitable for various locations such as bathrooms, bedrooms, and living rooms. (Panasonic ceiling-mounted fan, Panasonic suspended ceiling fan, suspended fan, ceiling-mounted fan, bedroom fan, bathroom fan, dining room fan) And the other rooms work very well too.
It has a condenser box to prevent fire spread. The power cord and plug have double insulation according to IEC standards.
The materials must comply with RoHS (Restriction of Hazardous Substances) standards for environmental friendliness. The large fan has two speed levels for powerful airflow and is also very energy efficient.
